How to Choose the Right Aluminum Flange for Your Application
Selecting the wrong flange can lead to costly downtime, safety risks, and reduced system efficiency in critical piping networks. This guide defines aluminum flanges, compares common flange types, examines key selection factors—from operating environment and alloy grade to pressure classes and dimensions—outlines essential industry standards, and covers maintenance practices that extend service life. By following these steps, engineers and procurement teams can ensure optimal performance, safety, and cost-effectiveness when specifying flanges for HVAC, marine, chemical processing, or aerospace installations.
Why Choose Aluminum Flanges?
Aluminum flanges are mechanical connectors crafted from lightweight alloys, designed to join pipes, valves, and equipment while offering superior corrosion resistance in many industrial environments. Their remarkable strength-to-weight ratio reduces structural load and simplifies handling without compromising safety. For example, marine piping systems often rely on aluminum flanges to withstand saltwater exposure while minimizing vessel weight.
- Lightweight Design: Reduces overall system mass and eases installation in remote or elevated locations.
- Corrosion Resistance: Withstands harsh chemicals and saltwater, extending service intervals in marine or chemical applications.
- Cost-Effectiveness: Delivers lower material and handling costs compared to stainless steel, with competitive long-term value.
- Thermal Conductivity: Promotes even heat distribution in heat-exchanger or HVAC systems.
- High Strength-to-Weight Ratio: Balances mechanical loads and supports moderate to high pressure classes.
- Recyclability: Enables eco-friendly practices through 100% recyclable material content.
These advantages collectively ensure that aluminum flanges meet both technical and budgetary requirements across diverse applications, establishing them as a reliable choice for modern piping systems.

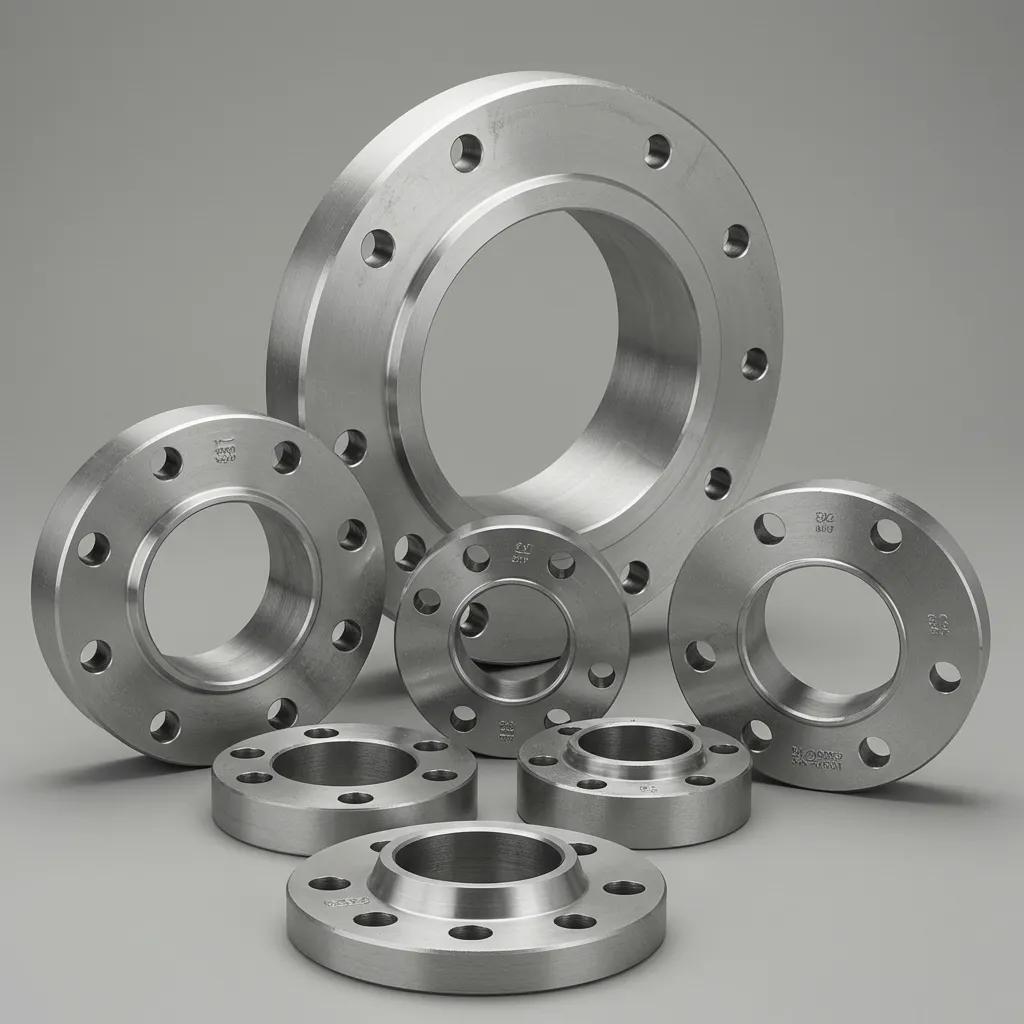

Understanding Aluminum Flange Types
Aluminum flanges come in multiple designs tailored to specific pressure ratings, installation methods, and service conditions. Selecting the right type hinges on matching flange geometry to system demands such as pressure, ease of assembly, and sealing requirements.
Each flange type delivers distinct installation and sealing characteristics. Understanding these geometric and pressure attributes guides the selection process toward the flange design that aligns with both operational demands and maintenance schedules.
Critical Factors for Aluminum Flange Selection
Factors for Aluminum Flange Selection
Choosing an aluminum flange requires analyzing environmental stresses, material properties, and system constraints. Key considerations include fluid type, operating pressure, temperature range, and corrosive agents.
Application Environment
The medium conveyed, pressure level, temperature range, and chemical exposures determine the required flange attributes. For instance, seawater service demands alloys with exceptional corrosion resistance, while high-temperature steam systems call for flanges rated to specific thermal limits.
Key environment considerations include:
- Fluid Type: Water, oil, gas, or corrosive chemicals influence corrosion allowance.
- Operating Pressure: Defines necessary pressure class (e.g., ANSI 150#, PN16).
- Temperature Range: Limits flange material selection to alloys rated for peak and cycling temperatures.
- Corrosive Agents: Salt, acids, or alkalis require enhanced corrosion-resistant grades.
Accounting for these parameters ensures that flange material and design sustain long-term reliability under real-world service conditions, paving the way to evaluate precise alloy grades.
Material Grade and Alloy
Aluminum alloys differ in composition and mechanical strengths, affecting weldability, ductility, and corrosion resistance. Selecting the proper grade aligns alloy characteristics with application demands and welding processes.
Choosing an alloy grade that balances strength, weldability, and environmental resistance prevents premature failure and supports safe flange installation. Matching properties to service conditions minimizes corrosion and maximizes mechanical integrity.
Pressure and Temperature Ratings
Pressure class and temperature capability define each flange’s safe operating envelope. Correctly matching these ratings to system specs avoids gasket blow-outs and flange distortion under load.
Ensuring flange pressure and temperature ratings exceed system demands builds a safety margin against transient spikes, thermal cycling, and operational fluctuations.
Flange Dimensions and Sizing
Proper flange dimensions guarantee compatibility with mating pipes and gaskets, preventing misalignment and leaks. Dimension parameters include outer diameter, inner bore, face spacing, and bolt-circle measurements.
Core sizing parameters are:
- Outer Diameter (OD): Ensures clearance for adjacent components.
- Inner Diameter (ID): Matches pipe bore to maintain flow capacity.
- Face-to-Face Thickness: Determines structural rigidity.
- Bolt-Circle Diameter: Aligns with bolt pattern on mating flange.
- Bolt-Hole Size and Number: Affects gasket compression and load distribution.
Accurate measurement and specification of these dimensions prevent installation errors and support standardized interchangeability in piping networks.
Installation and Connection Method
The chosen connection style—weld neck, slip-on, threaded, or gasketed—influences installation complexity and service flexibility. For welded joints, slip-on flanges simplify alignment but require quality weld procedures. Threaded flanges avoid welding in hazardous environments but limit pressure ratings.
Common connection methods include:
- Butt-Weld: Permanent, high strength, suitable for critical systems.
- Slip-On Welding: Easier alignment, moderate pressure capacity.
- Threaded: No hot work, best for low-pressure corrosive services.
- Gasketed Joint: Requires compatible gasket material for seal integrity.
Evaluating these methods ensures installation efficiency and facilitates future maintenance or disassembly operations.
Cost-Effectiveness and Lifecycle
Total cost of ownership goes beyond upfront flange pricing to include installation labor, inspection cycles, and replacement intervals. A lower initial cost alloy may incur higher maintenance or shorter service life.
Lifecycle cost factors:
- Upfront Material Price: Varied by alloy grade and flange type.
- Installation Labor: Welding time, match-marking, and inspection requirements.
- Maintenance Frequency: Corrosion control, torque checks, and gasket replacement.
- Expected Service Life: Correlates with alloy durability and operating severity.
Balancing initial investment against long-term reliability delivers the best economic value while maintaining system uptime.
Industry Standards and Certifications
Compliance with recognized standards guarantees flange interchangeability, safety, and performance.
Aluminum Flange Standards
Aluminum flange standards include ASA/ANSI/ASME (USA), PN/DIN (European), BS10 (British/Australian), and JIS/KS (Japanese/Korean). These standards ensure interchangeability and consistency across manufacturers.
Key certifications include:
- ASME B16.5: Covers pipe flanges and flanged fittings up to 24″ and classes 150–2500. ASME B16.5 is a widely used standard for pipe flanges and flanged fittings, covering sizes from NPS 1/2 to NPS 24. This standard specifies pressure-temperature ratings, materials, dimensions, and testing methods.
ASME B16.5 Standard
- ASTM B247: Defines chemical composition and mechanical properties for aluminum flange stock. ASTM B247 defines the chemical composition and mechanical properties for aluminum flange stock. This standard covers aluminum-alloy die forgings, hand forgings, and rolled ring forgings.
ASTM B247 Standard
- ANSI/ASNI: Specifies national adaptations of ISO and ASME standards.
- DIN & JIS: Provide European and Japanese flange dimension equivalents.
Adherence to these standards enables global compatibility and simplifies sourcing parts from qualified suppliers, reinforcing system safety.
Maintenance and Longevity
Routine inspection and care bolster flange integrity and prevent unscheduled outages. By implementing scheduled checks, teams stay ahead of corrosion, gasket wear, and bolt loosening.
Recommended maintenance activities include:
- Periodic visual inspections: Identify corrosion pitting or seal damage.
- Cleaning and passivation: Remove deposits and restore protective oxide layers.
- Bolt torque verification: Maintain even gasket compression and seal performance.
- Corrosion inhibitor application: Protect exposed surfaces in aggressive environments.
Aluminum Flange Maintenance
Routine inspection and care are essential for maintaining flange integrity and preventing unscheduled outages. Recommended maintenance activities include periodic visual inspections, cleaning, bolt torque verification, and corrosion inhibitor application.
Regular maintenance preserves flange sealing integrity and extends the operational lifespan of both individual components and the overall piping network.
Integrating these selection criteria—from environment and alloy grade to dimensioning and standards compliance—ensures that aluminum flanges deliver reliable performance, safety, and cost savings over their service life. By following this structured approach, engineering teams can confidently specify the right flange design for any industrial application, optimize procurement decisions, and reduce maintenance overhead.
